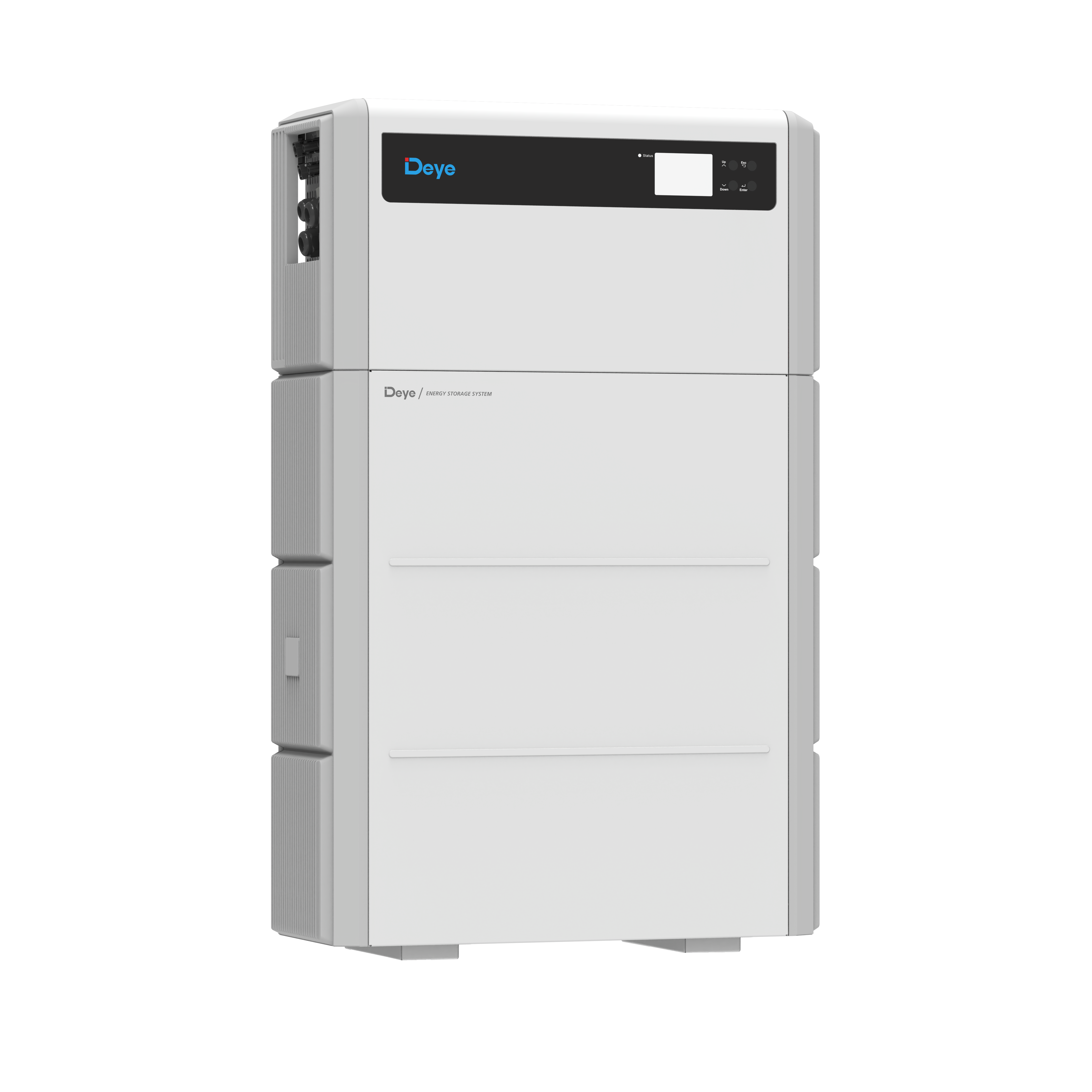

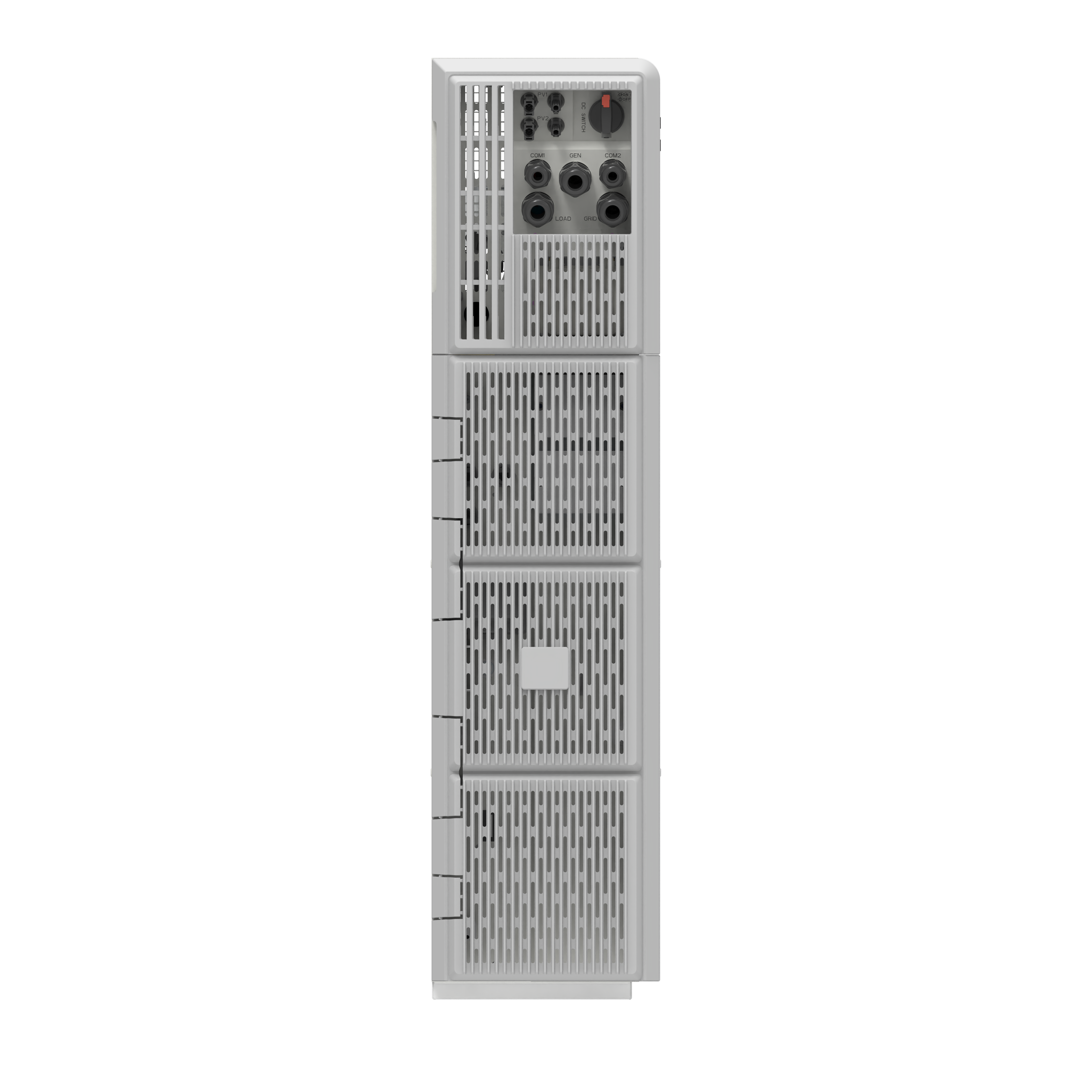

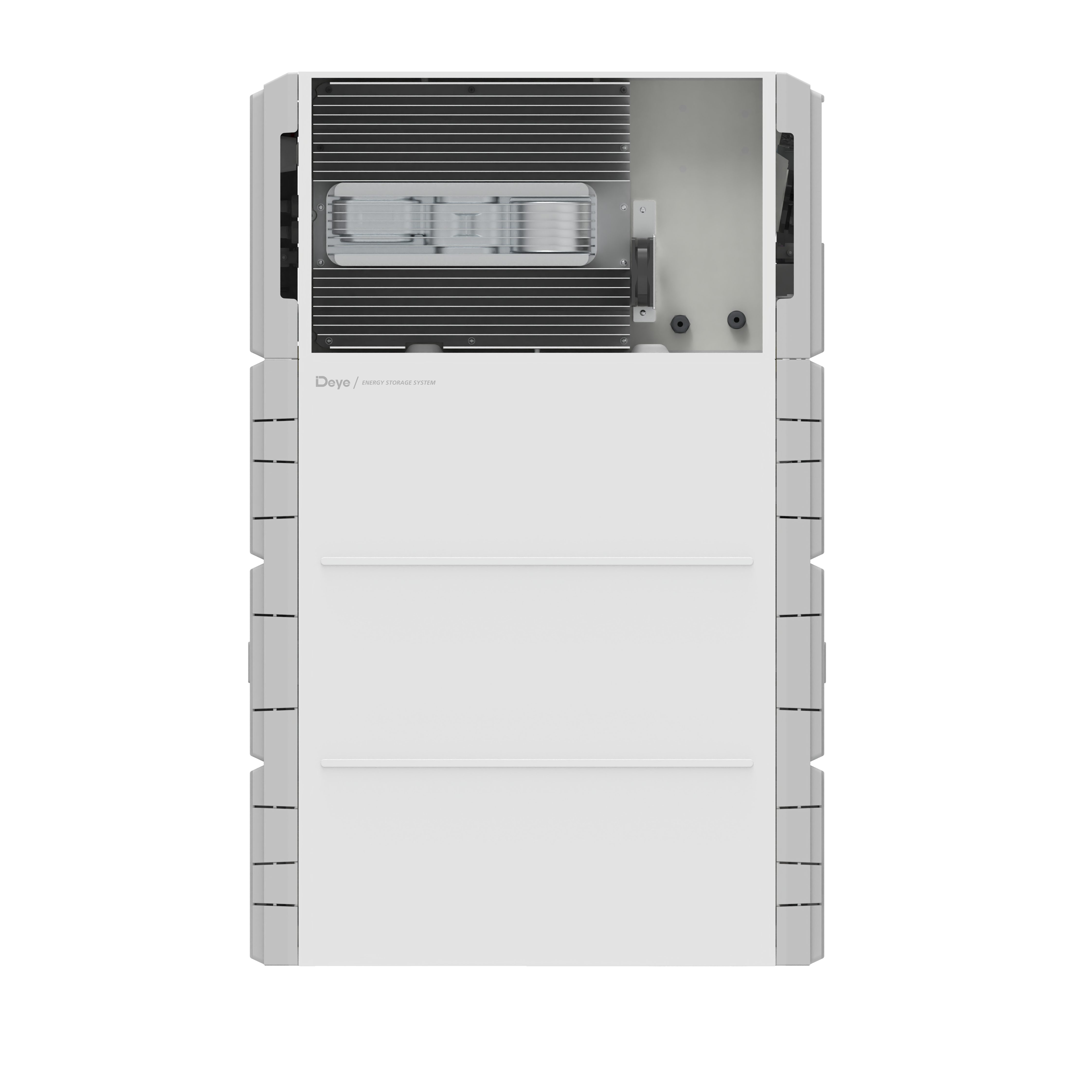

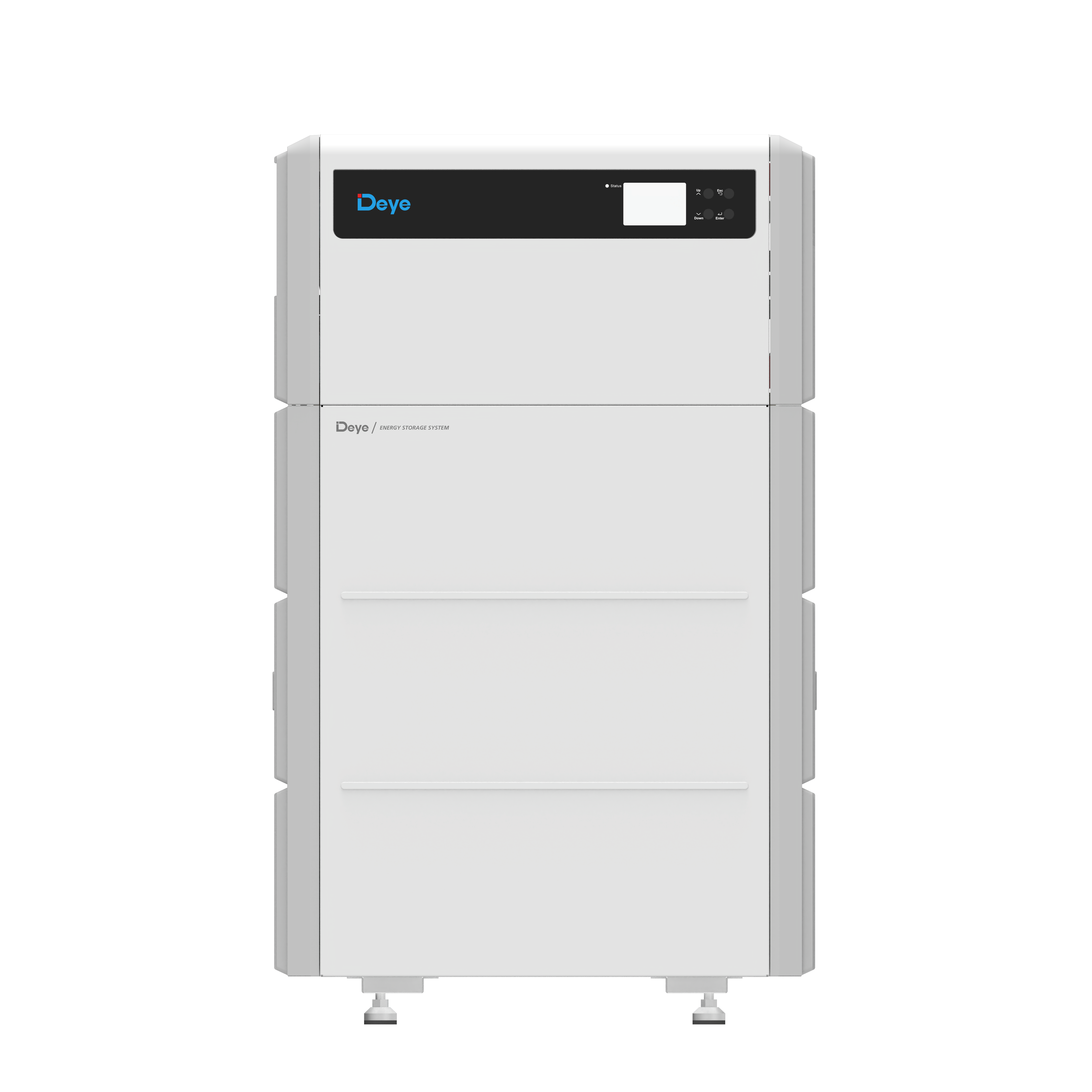

Name: Deye LV Stackable Energy Storage System
Rating: 5 (99 reviews)

Model	SUN-3.6K-SG06LP1-AU-TM2	SUN-4K-SG06LP1-AU-TM2	SUN-5K-SG06LP1-AU-TM2	SUN-6K-SG06LP1-AU-TM2	SUN-7.5K-SG06LP1-AU-TM3	SUN-8K-SG06LP1-AU-TM3	SUN-10K-SG06LP1-AU-TM3	SUN-12K-SG06LP1-AU-TM3
Battery Input Data
Battery Type	LiFePO4
Battery Voltage Range(V)	41.6-58.4
Max. Charging/Discharging Current (A)	90	95	120	135	185	185	220	250
Number of Battery Input	1
PV String Input Data
Max. PV access power (W)	7200	8000	10000	12000	15000	16000	20000	24000
Max. PV Input Power (W)	5760	6400	8000	9600	12000	12800	16000	19200
Max. PV Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current (A)	18+18				36+18+18			36+36+18
Max. Input Short-Circuit Current (A)	27+27				54+27+27			54+54+27
No.of MPP Trackers/No.of Strings MPP Tracker	2/1+1				3/2+1+1			3/2+2+1
AC Input/Output Data
Rated AC Input/Output Active Power (W)	3600	4000	5000	6000	7500	8000	9999	12000
Max. AC Input/Output Apparent Power (VA)	3600	4000	5000	6000	7500	8000	9999	12000
Rated AC Input/Output Current(A)	15.7	17.4	21.8	26.1	32.7	34.8	43.5	52.2
Max. AC Input/Output Current (A)	15.7	17.4	21.8	26.1	32.7	34.8	43.5	52.2
Max. Continuous AC Passthrough(grid to load) (A)	50				65			70
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated input/output voltage	230/240V 0.85Un-1.1Un L+N+PE
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5% In
Efficiency
Max. Efficiency	97.6%
Euro Efficiency	96.5%
MPPT Efficiency	>99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
LCD/LED Display	LCD+LED
Communication Interface	WIFI, RS485, CAN, LORA, Bluetooth
General Data
Noise (dB)	<45
Ingress Protection (IP) Rating	IP66
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (W×H×D mm)	662×331×255				662×354×255
Weight (kg)	20.5				28		28.3
Type of Cooling	Intelligent Air Cooling

[1] Tested at 25℃±2℃, 70%EOL.

Model	SUN-5K-SG06LP3-AU-TM2	SUN-6K-SG06LP3-AU-TM2	SUN-8K-SG06LP3-AU-TM2
Battery Input Data
Battery Type	LiFePO₄
Battery Voltage Range(V)	41.6-58.4
Max. Charging/Discharging Current (A)	120	135	190
Number of Battery Input	1
PV String Input Data
Max. PV access power (W)	10000	12000	16000
Max. PV Input Power (W)	8000	9600	12800
Max. PV Input Voltage (V)	800
Start-up Voltage (V)	160
MPPT Voltage Range (V)	200-650
Rated PV Input Voltage (V)	550
Max. Operating PV Input Current (A)	20+20
Max. Input Short-Circuit Current (A)	30+30
No.of MPP Trackers/No.of Strings MPP Tracker	2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W)	5000	6000	8000
Max. AC Input/Output Apparent Power (VA)	5000	6000	8000
Rated AC Input/Output Current (A)	7.3	8.7	11.6
Max. AC Input/Output Current (A)	7.3	8.7	11.6
Max. Continuous AC Passthrough (grid to load) (A)	45
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated input/output voltage	230/400V, 240/415V 0.85Un-1.1Un 3L+N+PE
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5% In
Efficiency
Max. Efficiency	97.6%
Euro Efficiency	96.5%
MPPT Efficiency	>99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch,Insulation Impedance Detection, Residual Current Detection



Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
LCD/LED Display	LCD+LED
Communication Interface	WIFI, RS485, CAN, LORA, Bluetooth
General Data
Noise (dB)	<45
Ingress Protection (IP) Rating	IP66
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (W×H×D mm)	662×354×255
Weight (kg)	26.2
Type of Cooling	Intelligent Air Cooling

Model	SUN-10K-SG05LP3-AU-TM2	SUN-12K-SG05LP3-AU-TM2	SUN-15K-SG05LP3-AU-TM3	SUN-20K-SG05LP3-AU-TM3
Battery Input Data
Battery Type	LiFePO₄
Battery Voltage Range(V)	41.6-58.4
Max. Charging/Discharging Current (A)	210	240	300	380
Number of Battery Input	1
PV String Input Data
Max. PV access power (W)	20000	24000	30000	40000
Max. PV Input Power (W)	16000	19200	24000	32000
Max. PV Input Voltage (V)	800
Start-up Voltage (V)	160
MPPT Voltage Range (V)	200-650		160-650
Rated PV Input Voltage (V)	550
Max. Operating PV Input Current (A)	26+26		36+20+20
Max. Input Short-Circuit Current (A)	39+39		54+30+30
No.of MPP Trackers/No.of Strings MPP Tracker	2/2+2		3/2+1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W)	9999	12000	15000	20000
Max. AC Input/Output Apparent Power (VA)	9999	12000	15000	20000
Rated AC Input/Output Current (A)	14.5	17.4	21.8	29
Max. AC Input/Output Current (A)	14.5	17.4	21.8	29
Max. Continuous AC Passthrough (grid to load) (A)	45		70
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated input/output voltage	230/400V, 240/415V 0.85Un-1.1Un 3L+N+PE
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55
Total Current Harmonic Distortion THDi	<3%
DC Injection Current	<0.5% In
Efficiency
Max. Efficiency	97.6%		97.6%
Euro Efficiency	96.5%		97.0%
MPPT Efficiency	>99%		>99%
Equipment Protection
Integrated	DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (AFCI) (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
LCD/LED Display	LCD+LED
Communication Interface	WIFI, RS485, CAN, LORA, Bluetooth
General Data
Noise (dB)	≤55		<60
Ingress Protection (IP) Rating	IP66
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (W×H×D mm)	662×375×255		662×450×255
Weight (kg)	34		/
Type of Cooling	Intelligent Air Cooling

Model		AI-W16-6
Main Parameter
Battery Chemistry		LiFePO₄
Built-in Circuit Breaker		250A, 80Vdc
Rated Capacity (Ah) [1]		314
Nominal Voltage (V)		51.2
Operating Voltage(V)		44.8 ~ 57.6
Nominal Energy (kWh)^[1]		16
Usable Energy (kWh) ^[1]		16
Charge Current (A) ^[2]	Max.Continuous	160
	Peak	192
Discharge Current (A) ^[2]	Max.Continuous	220
	Peak	264
Other Parameter
Recommend Depth of Discharge		100% DoD
Dimension (mm , W/H/D)		662 x 715 x 257 (Without base)
Weight (kg)		120kg
Display		LED(working, protecting, alarming)
IP Rating of Enclosure		IP66
Operating Temperature		Charge: -20~+55℃ (Heating On), Discharge: -20~+55℃
Storage Temperature		0℃~35℃
Relative Humidity		95% (non-condensing)
Cycle Life		≥8000(25℃±2℃, 70%EOL)
Max. Energy RTE (DC) ^[1]		95%
Installation		Floor-Mounted, Stack-Mounted
Communication		CAN2.0
Certification		UN38.3, CE, CB, CEC
Energy Throughput^[3]		50 MWh
Warranty Period^[3]		10 years

[1] Test conditions : 25℃ ±2℃ , at beginning of life, 0.2C charge & 0.2C discharge, 100% DOD.

[2] The current is affected by temperature and SOC.

[3] Conditions apply, refer to Deye Warranty Letter.

[4] Made in China.
